Power Module
- 5V 6A power supply and digital power monitor designed for the Pixhawk Autopilot Bus Carrier boards supporting 8S batteries
Cost: $150.00

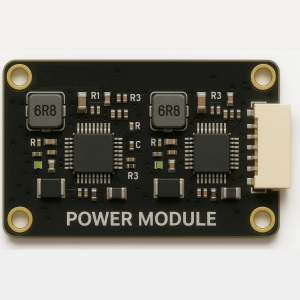

The 8S PAB Power Module is a 5V 6A power supply and digital power monitor designed for the Pixhawk Autopilot Bus Carrier boards.
- TI INA238 Digital Power Monitor
- 0.0001 Ohm Shunt
- I2C Interface
- 5.2V 6A Step-Down Regulator
- 75V Maximum Input Voltage
- 10V Minimum Input Voltage at 6A Out
- Output Over-Current Protection
- Solder Pads Battery Input
- Solder Pads Battery Output
- 6 Pin Molex CLIK-Mate Output
- Dimensions
- 3.7cm x 2.2cm x 1.3cm
- Weight
- 25g
- USA Built
